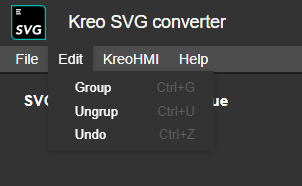

The Edit menù is necessary whenever the user has to modify the SVG file graphic layers.
In order to create an animation it is necessary to group the different layers that will be driven via the same property.

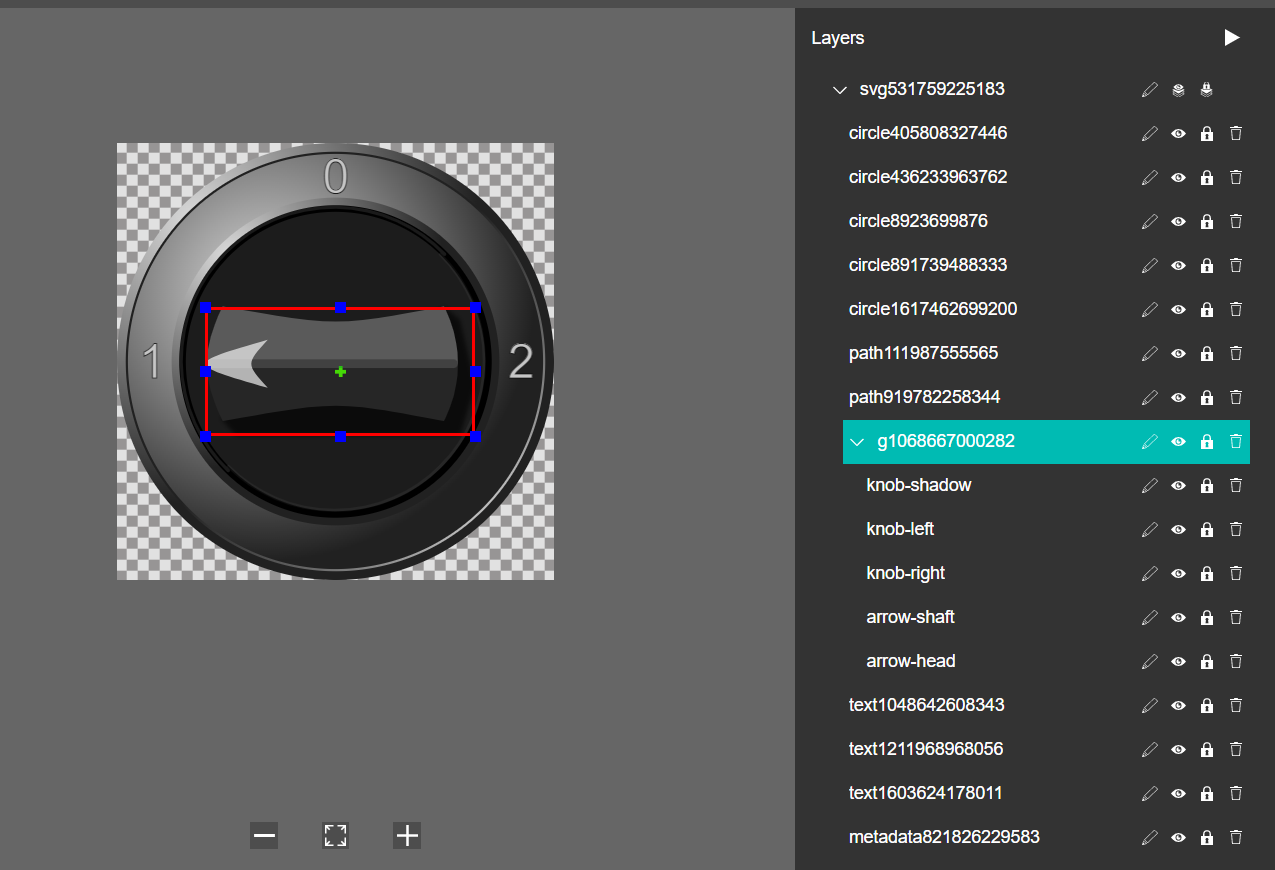

Let's suppose that we need to animate the knob indicator.
First of all it is necessary to create a group including all the component of the indicator itself.
A Kreo property will be associated to this group in order to drive the rotation based on a tag value.
|
Function
|
Description
|
|
Group
|
Let the user create a group including several layers.
The programmer has to select in the level object tree wich are the different levels to be grouped.
In order to select several levels it is necessary to click with the CTRL key pressed.
Once the different layers have been selected the command Group has to be fired.
|
|
Ungroup
|
Let the user expand the group and display each single layer as a separate item.
The user has to select the group and fire the command Remove the group
|
|
Undo
|
Let the user cancel the last commands.
CTRL+Z is the equivalent shortcut
|
