Tag Name
|
Description
|
Note
|
|

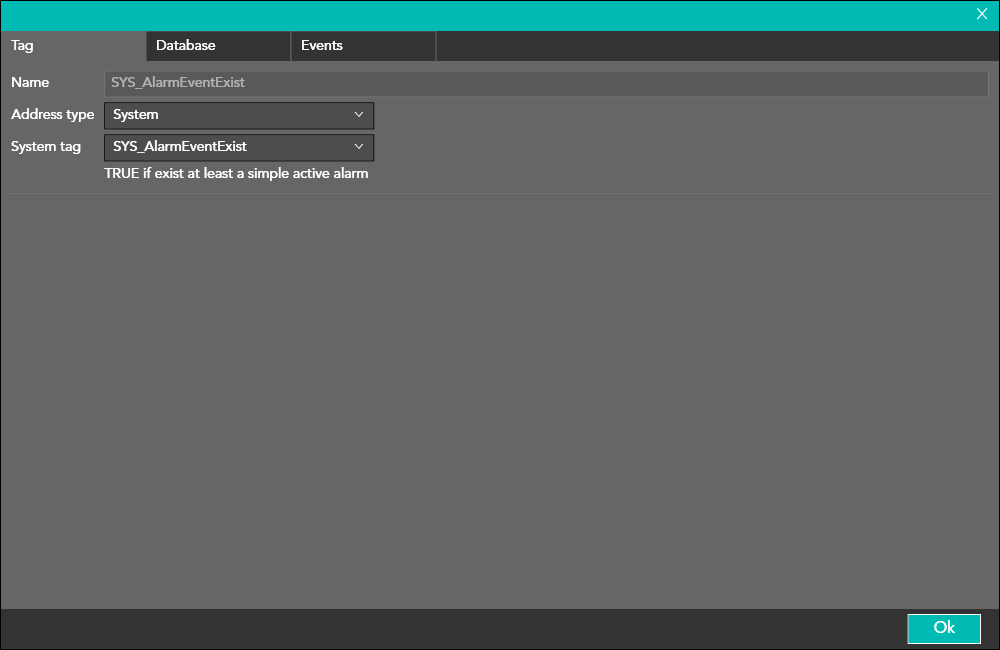

SYS_AlarmEventExist
|
|
TRUE: at least one alarm is on
FALSE: no alarm is on
|
|
SYS_AlarmExist
|
Indicates whether at least one ISA type alarm (WITH ACKNOWLEDGE) is active
|
TRUE: at least one alarm is on
FALSE: no alarm is on
|
|
SYS_AlarmFull
|
Indicates whether the active alarm buffer is full
|
TRUE: the active alarm buffer is full
FALSE:the active alarm buffer is not full
|
|
SYS_AlarmIsaExist
|
Indicates whether at least one ISA alarm is active
|
TRUE: at least one alarm is on
FALSE: no alarm is on
|
|
SYS_AlarmMainId
|
Selected alarm Id
|
|
|
SYS_AlarmMainKey
|
Key of the selected alarm
|
|
|
SYS_AlarmMainMessage
|
Message of the selected alarm
|
|
|
SYS_AlarmMainName
|
Name of the selected alarm
|
|
|
SYS_AlarmMainPriority
|
Priority of the selected alarm
|
|
|
SYS_AlarmNotAck
|
Total number of not acknolwedged ISA alarm
|
|
|
SYS_AlarmNotOff
|
Number of active or active alarms recognized in the system
|
|
|
SYS_AlarmNum
|
Number of active alarms
|
|
|
SYS_AlarmsNum
|
Number of alarms defined in the project
|
|
|
SYS_AlarmPath
|
Path to the folder where the alarm history is saved
|
|
|
SYS_AnyClientDebugState
|
Returns if at least one client failed to start debug mode.
|
TRUE: At least one client did not complete the process to enter debug mode.
FALSE: All clients entered debug mode without errors.
|
|
SYS_ClientDebugState
|
Array containing the state of each client when they go into debug mode.
|
Each element of the array has a value of TRUE or FALSE depending on whether the switch to debug mode was successful or not.
|
|
SYS_DatalogNum
|
Number of datalogs defined in the project
|
|
|
SYS_DataLogsPath
|
Path to the folder where the DataLogs are saved
|
|
|
SYS_DateAndTime
|
System date and time
|
It must be displayed with an edit box in Date and Time format
|
|
SYS_DeviceIpAddress
|
Displays the IP address of the selected device
|
All devices defined in the project have an incremental Id that identifies them
|
|
SYS_DeviceName
|
Device name defined in the project
|
The line is identified by the parameter
|
|
SYS_DeviceNumErrors
|
Number of errors occurred in communication with the device
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceNumRx
|
Number of packets received
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceNumTx
|
Number of packets transmitted
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceTimeAvg
|
Average communication time (in microseconds)
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceTimeBuffer
|
Buffer that records the last 128 communication times
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceTimeHead
|
Index of the next slot in the buffer that records communication times
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceTimeLast
|
Time in microseconds of the last data exchange with the device
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceTimeMax
|
Maximum communication time in microseconds
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DeviceTimeMin
|
Minimum communication time value in microseconds
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DLogAverage
|
Average value of samples related to a specific tag inserted in a datalog
|
Name of the Datalog and name of the Tag that belongs to the selected Datalog
|
|
SYS_DLogMax
|
Maximum value of samples related to a specific tag inserted in a datalog
|
Name of the Datalog and name of the Tag that belongs to the selected Datalog
|
|
SYS_DLogMin
|
Minimum value of samples related to a specific tag inserted in a datalog
|
Name of the Datalog and name of the Tag that belongs to the selected Datalog
|
|
SYS_DLogSum
|
Sum of all values ​​related to a specific tag inserted in a datalog
|
Name of the Datalog and name of the Tag that belongs to the selected Datalog
|
|
SYS_DriverAddress
|
Address of the selected driver
|
|
|
SYS_DriverError
|
Error state of the selected driver
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DriverName
|
Name of the selected driver
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_DriverState
|
State of the selected driver
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_SriverVersion
|
Version of the selected driver
|
The parameter identifies the communication driver from 1 to n.
Driver number 1 is the first one appearing on the first communication port of the device.
The other indices follow.
|
|
SYS_EthNames
|
Names of the devices connected to the ethernet port
|
Array in which each element contains the name of the device
|
|
SYS_HistoryFull
|
Historical buffer status
|
TRUE when the buffer is full
|
|
SYS_HistoryNum
|
Number of events recorded in the historical buffer
|
|
|
SYS_HistoryWarning
|
Historical buffer filling status
|
TRUE quando i dati sono superiori al limite dichiarato come warning
|
|
SYS_IpAddresses
|
Ip addresses of all the ethernet ports of the product
|
Array in which each element contains the IP address of a port
|
|
SYS_LanguagesNum
|
Total number of the project languages
|
|
|
SYS_LastAlarm
|
Last alarm message
|
|
|
SYS_LastErrorCode
|
Last error code
|
|
|
SYS_LastErrorFlags
|
Service tag containing the last error code.
|
To be used with the ESA support people
|
|
SYS_LastErrorMessage
|
Last error message
|
|
|
SYS_LineName
|
Name of the communication lines
|
The communication port Id has to be given as parameter
|
|
SYS_LineState
|
If the line is used or not
|
TRUE if the specified line is used
|
|
SYS_MachineName
|
ESA device Name
|
|
|
SYS_MesureId
|
Current metric system Id
|
|
|
SYS_MeasuresName
|
Current metric system name
|
|
|
SYS_NumClients
|
Total number of active connections
|
|
|
SYS_NumClientsNet
|
edgeHMI client connected
|
Only in the case of a network project (not currently foreseen)
|
|
SYS_NumClientsWeb
|
Total number of webHMI client sonnected
|
|
|
SYS_NumClientsWs
|
Total number of clients sonnected via a websocket
|
|
|
SYS_NumDevices
|
Number of devices connected via a specific driver
|
The parameter is the driver Id
|
|
SYS_NumDevices
|
Total number of devices defined in the project
|
|
|
SYS_NumDrivers
|
Total number of drivers connected to the selected port
|
Communication port
|
|
SYS_NumDrivers
|
Total number of the communication drivers
|
|
|
SYS_NumIpAddresses
|
Total number of the active Ip addresses
|
|
|
SYS_NumLinesTotal
|
Total number of the communication lines
|
|
|
SYS_NumLinesUsed
|
Total number of the used communication lines
|
|
|
SYS_PagesNum
|
Total number of the project pages
|
|
|
SYS_PipelinesNum
|
Total number of the project pipelines
|
|
|
SYS_PlatformType
|
Hardware platform type
|
|
|
SYS_ProjectDateAndTime
|
Date/time of the last project compiling
|
|
|
SYS_ProjectName
|
Project Name
|
|
|
SYS_RecipeNum
|
Total number of recipes in the archive
|
Recipe structure Name
|
|
SYS_RecipePath
|
Folder path ehere the recipe archive is saved
|
|
|
SYS_RecipeStructsNum
|
Total number of the recipe structures
|
|
|
SYS_RunMode
|
TRUE if the PLC application is in run mode
|
|
|
SYS_Script
|
Running script name
|
|
|
SYS_SoftPlcStatus
|
SoftPLC status
|
|
|
SYS_TagsNum
|
Total number of project tags
|
|
|
SYS_TagsPath
|
Tag database path
|
|
|
SYS_TimeMode
|
Selected time mode
|
0 = local time. 1 = GMT
|
|
SYS_TimerLimit
|
Max value of the selected timer
|
Timer name
|
|
SYS_TimerProgress
|
Current value of the selected timer
|
Timer name
|
|
SYS_TimersNum
|
Total number of timers defined in the project
|
|
|
SYS_UIAlarmMainMessage
|
Message of the selected alarm
|
|
|
SYS_UIClientId
|
Id of the current client
|
|
|
SYS_UIClientIP
|
Ip address of the current client
|
|
|
SYS_UIClientName
|
Name of the current client
|
|
|
SYS_UIClientPageId
|
Id of the current page displayed (internal Id)
|
|
|
SYS_UIClientPageName
|
Name of the current page
|
|
|
SYS_UIClientPageNo
|
Number of the current page
|
|
|
SYS_UIClientTrendMoveTo
|
Date and time to which the trend view moves
|
|
|
SYS_UIClientTrendStartTime
|
Date and time from which the imported pen starts
|
|
|
SYS_UIClientXPage
|
X coordinate of the mouse or touch on the current page
|
|
|
SYS_UIClientXPopup
|
X coordinate of the mouse or touch in the current pop-up page
|
|
|
SYS_UIClientYPage
|
Y coordinate of the mouse or touch on the current page
|
|
|
SYS_UIClientYPopup
|
Y coordinate of the mouse or touch in the current pop-up page
|
|
|
SYS_UIKeysBuffer
|
Buffer of characters coming from the keyboard or from a device working in keyboard emulation
|
To be used for example when connecting a bar code reader
|
|
SYS_UILanguageId
|
Id of the current language
|
|
|
SYS_UILanguageName
|
Name of the current language
|
|
|
SYS_UILastAlarm
|
Message of the last alarm
|
|
|
SYS_UIMediaId
|
Id of the current media
|
|
|
SYS_UIMediaName
|
Name of the current media
|
|
|
SYS_UIMediaOrientation
|
Orientation of the current media
|
|
|
SYS_UITimerClientStatus
|
State of the time
|
Id of the timer to be monitored
|
|
SYS_UIUserInteraction
|
User interaction
|
Value TRUE when the user interacts with the product using the mouse or touch
|
|
SYS_UIUserLevelInteract
|
Current protection level
|
|
|
SYS_UIUserLevelVisualize
|
Protection level of the current visualization
|
|
|
SYS_UIUserName
|
Name of the current user
|
|
|
SYS_UIWindowScreenHeight
|
Height of the current window
|
|
|
SYS_UIWindowScreenWidth
|
Width of the current window
|
|
|
SYS_UsersNum
|
Numer of the users defined in the project
|
|
|
SYS_UsersPath
|
Path where the user logbuffer is saved
|
|
